pyFltk scripts
(January 2005)

The scripts in this page have been tested with Python 2.3.3, FLTK 1.1.5, and pyFltk 1.1b3, on a Linux operating system.
Table of contents

Drawing and Value Sliders

Fl_Light_Button

Fl_Scroll

Drawing and Value Sliders

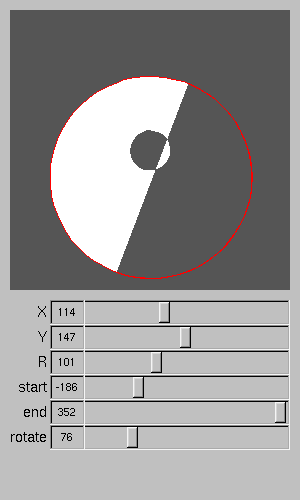

This example is a clone of the arc example included in the FLTK distribution.

And here is the python script:
#!/usr/bin/python

from fltk import *

class Drawing(Fl_Widget) :
	def draw(self) :
		global args
		fl_push_clip(self.x(), self.y(), self.w(), self.h())
		fl_color(FL_DARK3)
		fl_rectf(self.x(), self.y(), self.w(), self.h())
		fl_push_matrix()
		if args[5] :
			fl_translate(self.x()+self.w()/2.0, self.y()+self.h()/2.0)
			fl_rotate(args[5])
			fl_translate(-(self.x()+self.w()/2.0), -(self.y()+self.h()/2.0))
		fl_color(FL_WHITE)
		fl_translate(self.x(), self.y())
		fl_begin_complex_polygon()
		fl_arc(args[0], args[1], args[2], args[3], args[4])
		fl_gap()
		fl_arc(140, 140, 20, 0, -360)
		fl_end_complex_polygon()
		fl_color(FL_RED)
		fl_begin_line()
		fl_arc(args[0], args[1], args[2], args[3], args[4])
		fl_end_line()
		fl_pop_matrix()
		fl_pop_clip()


def slider_cb(widget, v) :
	global args, drawing
	args[v] = widget.value()
	drawing.redraw()

# "storage_area" is a storage array for widgets, so that
# they are not deleted if their variable name is deaffected
storage_area = []
args=[140, 140, 50, 0, 360, 0]
name=["X", "Y", "R", "start", "end", "rotate"]
window = Fl_Window(100,100,300,500)
drawing = Drawing(10, 10, 280, 280)
y = 300
for n in range(6) :
	s = Fl_Hor_Value_Slider(50, y, 240,25, name[n])
	y = y+25
	if n < 3 :
		s.minimum(0)
		s.maximum(300)
	elif n==5 :
		pass
		s.minimum(0)
		s.maximum(360)
	else :
		pass
		s.minimum(-360)
		s.maximum(360)
	s.step(1)
	s.value(args[n])
	s.align(FL_ALIGN_LEFT)
	s.callback(slider_cb, n)
	# store s, so that the s widget is not deleted on next loop
	storage_area.append(s)

window.end()
window.show()
Fl.run()
Note: the object contained in the "s" variable (the value slider) must be stored somewhere in order not to be deleted as soon as the variable is deaffected (a segmentation fault may occur otherwise).

Fl_Light_Button

In this example, we focus on 2 tricky points:
#!/usr/bin/python

from fltk import *

# caveat:
# the labeltext trick is necessary so that the memory space for widget.label()
# is not freed when the box_cb function terminates
labeltext = ""

def button_cb(widget) :
	global labeltext
	# caveat : the value method return a character \0 or \1 !!
	# that is why we use ord(widget.value())
	labeltext = "value="+str(ord(widget.value()))
	widget.label(labeltext)

window = Fl_Window(120, 75)

button = Fl_Light_Button(10, 10, 100, 25, "click")
button.callback(button_cb)

window.end()
window.show()
Fl.run()

Fl_Scroll

This part is just here to show how to position a scroll bar left, right, up or down.
#!/usr/bin/python

from fltk import *

class background(Fl_Widget) :
	def draw(self) :
		fl_color(FL_DARK3)
		fl_rectf(self.x(), self.y(), self.w(), self.h())

window = Fl_Window(100, 100)
window.box(FL_NO_BOX)
scroll = Fl_Scroll(0, 0, 100, 100)
scroll.getScrollbar().align(FL_ALIGN_LEFT+FL_ALIGN_TOP)
inside = background(0, 0, 200, 200)
scroll.end()
window.resizable(scroll)
window.end()
window.show()
Fl.run()
